GralWidget

java.lang.Object
- org.vishia.gral.base.GralWidgetBase
- - org.vishia.gral.base.GralWidget

All Implemented Interfaces:

GetGralWidget_ifc, GralSetValue_ifc, GralWidget_ifc, GralWidgetBase_ifc

Direct Known Subclasses:

GralButton, GralCanvasArea, GralCurveView, GralHorizontalSelector, GralHtmlBox, GralLabel, GralLed, GralPanelContent, GralSlider, GralTable, GralTextField, GralValueBar, GralWindow
```
public abstract class GralWidget
extends GralWidgetBase
implements GralWidget_ifc, GralSetValue_ifc, GetGralWidget_ifc
```
This class is the base class of representation of a graphical widget in the gral concept. All widgets in the gral concept have this base data independent of the implementation graphic. The implementation graphic should have a wrapper class inherited from GralWidget.ImplAccess which contains specials of the implementation and refers the widget of the implementation layer graphic, for example a text field.

Any widget is represented in the user's level by a derived instance of a GralWidget. There are 2 strategies yet to create widgets in respect to the graphical implementation. Either the Widget is created independent of the graphic implementation first and then taken as parameter for the graphic widget-creating method. In this case the GralWidget contains nothing of the graphic implementation but has a reference to it. The second strategy yet is, the Widget is returned by the graphic-implementation widget-creating method as a instance which has GralWidget and its non-graphic specializations as super class and the graphic depending parts in the created instance.

The first form is more universal. Especially generic can be used for the class definition if necessary. It us used yet only (2013-06) for
- org.vishia.gral.widget.GralHorizontalSelector#setToPanel(GralMngBuild_ifc)
- GralTable#setToPanel(GralMngBuild_ifc).
but it may be used more and more in the future. The setToPanel(GralMng) method invokes the graphic implementation specific derivation of the GralMng, which creates the implementation widgets.
For the UML presentation see org.vishia.util.Docu_UML_simpleNotation:
```
   GralHorizontalSelector< UserType > <-----<*>UserCanCreateIt_GraphicIndependently
   - some special non-graphic data
     |
     |<------------------------------------------------------------------data---|
     |                                                                          |
     |&<--------&GraphicImplAccess<|---+                                        |
     |                                 |                                        |
     +--|>GralWidget                   |                                        |
     |     |                           |                                        |
     |     |<>--->GralWidgImpl_ifc<|---+--SwtHorizontalSelector                 |
     |     |                                 |                                  |
     |     |                                 |                                  |
                                             |<*>------------------------>swt.Canvas
                                             |                                  |
                                             |                                  |
                                          -drawRoutine <-------drawListener---|
                                          -mouseListener<-------mouseListener---|
                                          -etc.


```
The user creates an instance of GralHorizontalSelector in any thread maybe as composite, it is independent of the graphic itself. Then the user builds its graphic appearance with invocation of GralHorizontalSelector#setToPanel(GralMngBuild_ifc) with the derived instance of GralMng as parameter.

The GralWidget knows the graphic implementation via the GralWidgImplAccess_ifc to invoke some methods for the graphical appearance. The interface is independent of the implementation itself. The implementor of this interface for this example is the SwtHorizontalSelector implements this methods.

The SwtHorizontalSelector refers the platform-specific widget Object (Swing: javax.swing.JComponent, org.eclipse.swt.widgets.Control etc.), in this case a org.eclipse.swt.widgets.Canvas. It contains the special draw routines, mouse handling etc.

The platform-specific widget has a reference to the GralWidget, in this case the GralHorizontalSelector stored as Object-reference. This reference can be used in the drawRoutine, mouseListerner etc. to get information about the GralWidget.

The second form takes most of the characteristics as parameters for the creating method. It needs inheritance.
```
   GralButton <-------UserCanAssociate it but can't create the instance with constructor.
       |
       |-------------|>SwtButton

```
The instance is Graphic-Implementation-specific and it is created with this interface as factory:
#addButton(String, GralUserAction, String).

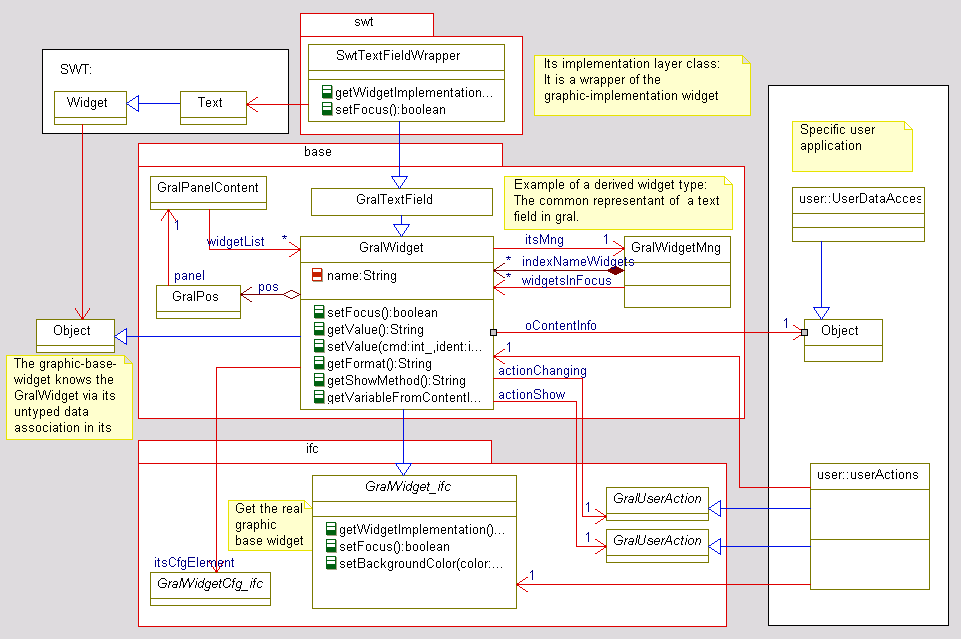

The ObjectModelDiagram may shown the relations:

In this graphic the relationship between this class and the graphical implementation layer widget is shown with the example 'text field' in SWT:
- The class GralTextField is the derived class of this to represent a text field in an implementation independent way.
- The class SwtTextFieldWrapper is the implementor for the GralTextField for SWT graphic.
- That implementor knows is SWT-specific and refers the SWT widget org.eclipse.swt.widgets.Text It based on the SWT-specific org.eclipse.swt.widgets.Widget.
The implementation layer widget should to be deal with this GralWidget because of some overridden methods of the implementation layer widget need that. The general contract is, that the implementation layer widget refers this GralWidget in its commonly user data field. For SWT it is org.eclipse.swt.widgets.Widget#setData(Object) method.

The Widget knows its GralPos at its panel where it is placed. The panel knows all widgets which are placed there (widgetList).

Change a widget from application in any thread:
The user can invoke the methods of the widget to animate it in a GUI etc, for example setBackColor(GralColor, int) or setValue(int, int, Object). This methods can be called in any thread. This concept is described with the method setText(CharSequence), appropriate for all set methods.

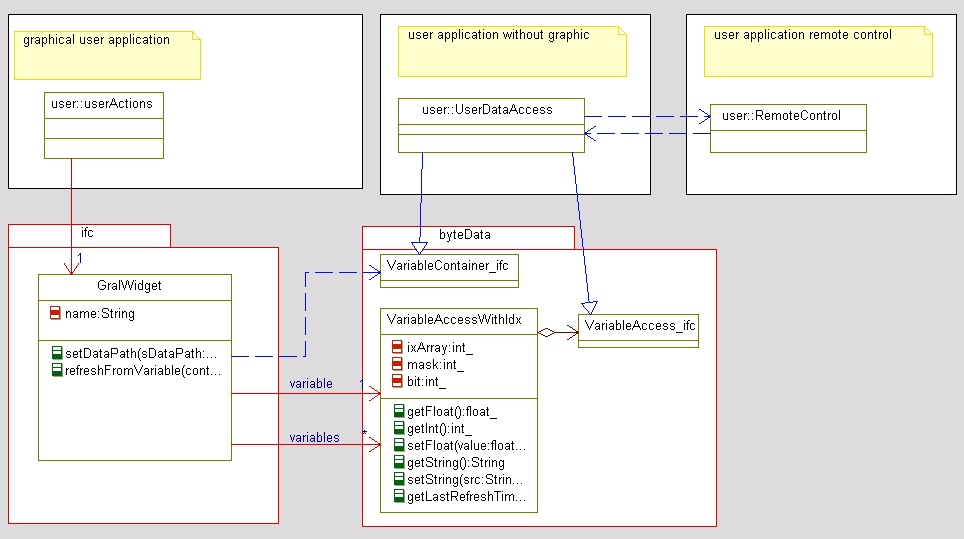

Concept of data binding
2012-05-19

A widget has 2 associations: variable and variables to a management class VariableAccessWithIdx which knows the user data via a commonly VariableAccess_ifc. The data can be existing in the user space with this interface. That part of user software doesn't know the graphical view of the data. The graphical part of software calls any refresh of showing, it calls the method refreshFromVariable(VariableContainer_ifc) for all visible widgets. With this the widget gets the data from user with the variable associations and prepares it for the proper appearance depending on the kind of widget, format String etc.

The association to the correct variable is given only with a String as argument of the setDataPath(String) method. The variable is found with the second interface VariableContainer_ifc which should be known by the graphical part of software and which is one parameter of the refreshFromVariable(VariableContainer_ifc) method. The conclusion between the String given variable name or path and the data can be supplied in any form in the users software, which knows the data.

The data can be coming from any remote device. In that kind there are two ways to get the actually values:
1. There is a cyclically communication. The remote device sends all data in a cycle maybe some 100 milliseconds. Then the actual data are present. The superior control should be call the refreshFromVariable(VariableContainer_ifc)-method if the data are received yet or in any other proper cycle.
2. The data are requested from the remote device only if they are need either for displaying in widgets of for other reasons. This kind of data holding are proper especially if they are a lot of data, not all of them should be communicated any time.
For the second approach a time of actuality and a time of requesting are used. The method requestNewValueForVariable(long) can be used to force communication.

Strategy of changing the graphical content of a widget:
See GralWidget_ifc

Strategy to create widgets and positioning: see GralMng.GralMngFocusListener.

Nested Class Summary

Nested Classes
Modifier and Type	Class and Description
`protected static class`	`GralWidget.ActionChangeSelect`
`static class`	`GralWidget.ConfigData` This class holds common configuration data for widgets.
`static class`	`GralWidget.DynamicData` This inner class holds the dynamic data of a widget.
`static class`	`GralWidget.ImplAccess` This is the super class of all GralWidget access classes of the implementation layer.

Nested classes/interfaces inherited from class org.vishia.gral.base.GralWidgetBase
GralWidgetBase.GralWidgComposite, GralWidgetBase.TimeOrderCreateImplWidget

Nested classes/interfaces inherited from interface org.vishia.gral.ifc.GralWidget_ifc
GralWidget_ifc.ActionChange, GralWidget_ifc.ActionChangeWhen

Field Summary

Fields
Modifier and Type	Field and Description
`GralWidget.ImplAccess`	`_wdgImpl` The implementation specific widget.
`protected boolean`	`bEditable` Set to true on `setEditable(boolean)`.
`protected boolean`	`bShouldInitialize` If this bit is true on an edit field, it should be initialized.
`GralWidget.ConfigData`	`cfg` Reference to the common configuration data for widgets.
`protected GralMenu`	`contextMenu` If not null, it is the right-mouse-button menu for this widget.
`private int`	`dataIx` An index associated to the data.
`protected long`	`dateUser`
`protected GralWidget.DynamicData`	`dyda`
`protected java.lang.String`	`htmlHelp` The relative path to a html help label (maybe an URL, or file, or file with label).
`private GralWidgetCfg_ifc`	`itsCfgElement` Association to the configuration element from where this widget was built.
`(package private) long`	`lastTimeSetVisible` The time when the bVisible state was changed.
`private java.lang.Object`	`oContentInfo` Any special info, may be set from any user class.
`protected int`	`redrawDelayMax` Standard delay to redraw if `redraw()` is called without arguments.
`private GralGraphicOrder`	`redrawRequ` This time order calls the `#redrawGthread()` in the graphical thread for this widget.
`protected int`	`redrawtDelay` Standard delay to redraw if `redraw()` is called without arguments.
`java.lang.String`	`sCmd` Any widget can have a command String, which can be quest for example in an action.
`private java.lang.String`	`sDataPath` Textual informations about content.
`protected java.lang.String`	`sFormat` Textual info about representation format.
`(package private) GralUserAction`	`showWidgetInfo`
`java.lang.String`	`sToolTip`
`static java.lang.String`	`sVersion` Version, history and license.
`private VariableAccess_ifc`	`variable` One variable which is associated with this widget.
`private java.util.List<VariableAccess_ifc>`	`variables` More as one variable which are associated with this widget.
`char`	`whatIs` numeric info what to do (kind of widget).
`private static GralWidget_ifc.ActionChangeWhen[]`	`whenAll` Contains all actions only to store a single action in
`protected GralMngBuild_ifc`	`XXXbuildMng`

Fields inherited from class org.vishia.gral.base.GralWidgetBase
_cdata, _wdgPos, bVisibleState, gralMng, name, pixSize

Fields inherited from interface org.vishia.gral.ifc.GralSetValue_ifc
version

Fields inherited from interface org.vishia.gral.base.GetGralWidget_ifc
version

Constructor Summary

Constructors
Modifier	Constructor and Description
`protected`	`GralWidget(GralPos currPos, java.lang.String sPosName, char whatIs)`
	`GralWidget(GralPos refPos, java.lang.String sPosName, char whatIs, boolean isComposite)` Creates a widget.
	`GralWidget(GralPos currPos, java.lang.String posName, java.lang.String name, char whatIs)`
	`GralWidget(GralPos currPos, java.lang.String posName, java.lang.String name, char whatIs, GralMng gralMng)` Constructs the widget with a maybe separately given position string.
	`GralWidget(java.lang.String sName, char whatIs, GralMng mng)` Deprecated.
	`GralWidget(java.lang.String pos, java.lang.String name, char whatIs)` Deprecated. since 2016-09: May use always `GralWidget#GralWidget(String, char)` if levels above are proper

Method Summary

All Methods Instance Methods Concrete Methods Deprecated Methods
Modifier and Type	Method and Description
`void`	`clearShowParam()` Clear the parameter if they are over-taken already.
`boolean`	`createImplWidget_Gthread()` Creates the implementation widget instance(s).
`GralWidget_ifc.ActionChange`	`getActionChange(GralWidget_ifc.ActionChangeWhen when)` Gets the action to execute on changing a widget.
`GralWidget_ifc.ActionChange`	`getActionChangeStrict(GralWidget_ifc.ActionChangeWhen when, boolean strict)` Gets the action to execute on changing a widget.
`GralUserAction`	`getActionDrag()`
`GralUserAction`	`getActionDrop()`
`GralUserAction`	`getActionFocused()`
`GralUserAction`	`getActionShow()` Gets the action to show the widget.
`GralColor`	`getBackColor(int ix)` Gets the background color for the widget.
`GralWidgetCfg_ifc`	`getCfgElement()`
`java.lang.String`	`getCmd()` Any widget can have a command String, which can be quest for example in an action.
`java.lang.String`	`getCmd(int option)` Get the command string from the `setCmd(String)` with choice of an option.
`long`	`getContentIdent()` Gets the content identification of the users data which are set with `GralWidget_ifc.setContentIdent(long)`.
`java.lang.Object`	`getContentInfo()` Deprecated. use `getData()`
`GralMenu`	`getContextMenu()` Gets the context menu to add a menu item.
`java.lang.Object`	`getData()` Gets the application specific info.
`int`	`getDataIx()`
`java.lang.String`	`getDataPath()` Gets the data path.
`java.lang.String`	`getDataPath(java.lang.String sDataPath)` Changes the data path
`float`	`getFloatValue()` Gets the float attribute value of this widget.
`GralWidgetBase_ifc`	`getFocusedWidget()` Default implementation for a widget without children
`java.lang.String`	`getFormat()`
`GralWidget`	`getGralWidget()` Returns this.
`java.lang.String`	`getHtmlHelp()`
`GralWidget.ImplAccess`	`getImplAccess()` Returns the instance which extends the `GralWidget.ImplAccess` of this widget.
`java.lang.Object`	`getImplWidget()` Returns the implementation widget or its Wrapper.
`GralPanelContent`	`getItsPanel()` Gets the panel where the widget is member of.
`float`	`getLongValue()` Gets the float attribute value of this widget.
`java.lang.String`	`getName()` Deprecated.
`java.lang.String`	`getShowMethod()`
`java.lang.String[]`	`getShowParam()` Returns the parameter of the show method.
`java.lang.String`	`getsToolTip()`
`java.lang.String`	`getText()` Get the text of this widget.
`java.lang.String`	`getValue()` Gets the current value of the content of the widget in the given context.
`VariableAccess_ifc`	`getVariable(VariableContainer_ifc container)`
`VariableAccess_ifc`	`getVariableFromContentInfo(VariableContainer_ifc container)` Deprecated.
`boolean`	`isChanged(boolean setUnchanged)` Returns true if the content is changed from a user action on GUI.
`boolean`	`isEditable()` Query whether this widget is able to change from user handling.
`boolean`	`isGraphicDisposed()` Returns true if the graphic implementatin widget was initialized, and then it was disposed.
`boolean`	`isInFocus()` Returns true if this widget is the focused one.
`boolean`	`isNotEditableOrShouldInitialize()` Query whether this field should be written from any initial or actual data.
`boolean`	`isVisible()` Returns whether the widget is visible or not.
`void`	`redraw()` repaint request.
`void`	`redraw(int delay, int latest)` Possible delayed repaint, can be called in any thread.
`void`	`redraw(int delay, int latest, boolean onlyDynamics)` The Implementation of redraw calls `#redrawGthread()` if it is the graphic thread and the delay is 0.
`void`	`redraw1(int delay, int latest)`
`void`	`redrawOnlyDynamics(int delay, int latest)`
`void`	`refreshFromVariable(VariableContainer_ifc container)` Capability for any widget to update its content from its associated variables described in its sDataPath.
`void`	`refreshFromVariable(VariableContainer_ifc container, long timeLatest, GralColor colorRefreshed, GralColor colorOld)` Refreshes the graphical content with the content of the variables.
`void`	`removeImplWidget_Gthread()` Removes the implementation widget, maybe to re-create with changed properties or also if the GralWidget itself should be removed.
`void`	`requestNewValueForVariable(long timeRequested)` Requests new values for all variables which are associated to this widget.
`void`	`setActionChange(GralUserAction action)` Deprecated. use instead `specifyActionChange(String, GralUserAction, String[], org.vishia.gral.ifc.GralWidget_ifc.ActionChangeWhen...)` possible in form 'specifyActionChange(null, action, null);'
`void`	`setActionFocused(GralUserAction action)`
`void`	`setActionMouse(GralMouseWidgetAction_ifc mouseWidgetAction, int mUser)` Sets the action for mouse operation.
`void`	`setActionShow(GralUserAction action, java.lang.String[] param)` Sets the action in application context which is invoked for applying user data to show in the widget.
`void`	`setBackColor(GralColor color, int ix)` Sets the background color for the widget.
`GralColor`	`setBackgroundColor(GralColor color)` Deprecated.
`void`	`setBoundsPixel(int x, int y, int dx, int dy)` This operation is used if the pixel are calculated on gral level.
`void`	`setCfgElement(GralWidgetCfg_ifc cfge)`
`void`	`setCmd(java.lang.String cmd)` Any widget can have a command String, which can be quest for example in an action.
`long`	`setContentIdent(long date)` Sets a identification for the shown data.
`void`	`setContentInfo(java.lang.Object content)` Deprecated. use `setData(Object)`
`void`	`setData(java.lang.Object data)` Sets a application specific data.
`void`	`setDataIx(int dataIx)`
`void`	`setDataPath(java.lang.String sDataPath)` Sets the data path.
`void`	`setDragEnable(GralUserAction action, int dragType)` Sets the action to receive a drop event and initializes the drop feature of the widget.
`void`	`setDropEnable(GralUserAction action, int dropType)` Sets the action to receive a drop event and initializes the drop feature of the widget.
`void`	`setEditable(boolean editable)` Sets whether it is able to edit the content of the text field or text box.
`void`	`setFocus()` Standard implementation.
`void`	`setFocus(int delay, int latest)` Sets the focus to this widget.
`void`	`setFocusedWidget(GralWidgetBase_ifc widg)` The default implementation is empty.
`GralColor`	`setForegroundColor(GralColor color)`
`void`	`setFormat(java.lang.String sFormat)`
`void`	`setHtmlHelp(java.lang.String url)` For context sensitive help, it assigns a part of a URL to the widget which has the focus gained.
`void`	`setLineColor(GralColor color, int ix)` Sets the line color for the widget.
`void`	`setLongValue(long value)` Sets a value to show.
`void`	`setMinMax(float minValue, float maxValue)` Sets the border of the value range for showing.
`void`	`setPrimaryWidgetOfPanel()` Default implementation:Most of widgets may have only one implementation widget.
`void`	`setText(java.lang.CharSequence text)` Set the text of the widget.
`void`	`setTextColor(GralColor color)` Sets the text color for the widget.
`void`	`setToolTip(java.lang.String sToolTip)`
`void`	`setToPanel(GralMng gralMng)`
`void`	`setValue(float value)` Sets a value to show.
`void`	`setValue(int cmd, int ident, java.lang.Object visibleInfo)` Sets the current value of the content of the widget in the given context.
`void`	`setValue(int cmd, int ident, java.lang.Object visibleInfo, java.lang.Object userData)` Sets the current value of the content of the widget in the given context.
`void`	`setValue(java.lang.Object[] value)` Sets some value to show any content.
`void`	`setVariable(VariableAccess_ifc variable)` Sets a variable associated to the widget to refresh with a value.
`boolean`	`setVisible(boolean visible)` Sets the widget visible or not.
`void`	`specifyActionChange(java.lang.String sAction, GralUserAction action, java.lang.String[] args, GralWidget_ifc.ActionChangeWhen... when)` Sets the action to invoke after changing or touching the widget due to GUI handling.
`private void`	`specifyActionChangeWhen(GralWidget_ifc.ActionChange action, GralWidget_ifc.ActionChangeWhen when)`
`void`	`specifyContextMenu(GralMenu menu)`
`(package private) void`	`stop()`
`java.lang.String`	`toString()` Especially for test and debug, short info about widget.
`java.lang.StringBuilder`	`toString(java.lang.StringBuilder u, java.lang.String... cond)`
`java.lang.Object`	`XXXgetWidgetImplementation()`
`void`	`XXXremoveWidgetImplementation()`
`void`	`XXXrepaintGthread()`
`boolean`	`XXXsetFocusGThread()`

Methods inherited from class org.vishia.gral.base.GralWidgetBase
checkImplWidgetCreation, createImplWidget, gralMng, hasFocus, pos, remove, resizePostPreparation, setFocused

Methods inherited from class java.lang.Object
clone, equals, finalize, getClass, hashCode, notify, notifyAll, wait, wait, wait

Methods inherited from interface org.vishia.gral.ifc.GralWidgetBase_ifc
gralMng, pos, setFocused

- Field Detail
  - sVersion
```
public static final java.lang.String sVersion
```
    Version, history and license.
    - 2023-02-12: Any widget gets a context menu now which contains the name of the widget as info, and which outputs the log with toString() as info.
    - 2023-01-20: confusion with setVisible(boolean) and setVisibleStateWidget() solved:
    - 2022-12-11 new: GralWidget.ActionChangeSelect.onAnyKey: This action was missing especially in a GralTable, because only the common action was used without designation. Is it satisfying? Better have the specific action for key pressing. The change was done maybe without necessity but with a systematically focus.
    - 2022-11-11 chg: createImplWidget_Gthread() is now only existing in this class, works together with the derived GralMng.ImplAccess.createImplWidget_Gthread(GralWidget). Necessities of GralWindow.mainPanel and children of GralPanelContent are regarded here.
    - 2022-11-01 new very important: redraw(int, int, boolean) and redrawOnlyDynamics(int, int). The concept of dynamics in the widget positions is introduced with the GralCanvasStorage. Generally: repaint and redraw are synonymous, also in SWT. I want to use better wording redraw if possible.
    - 2022-09-13 ImplAccess#setPosBounds() now regard the tab panel on resize.
    - 2022-09-13 new #toString(Appendable) usable for comprehensive reports and toString()
    - 2022-08 new GralWidget(GralPos, String, char) for the new concept, some more adaptions.
    - 2016-09-30 Hartmut improved: redraw(int, int) now the second argument can be really 0 to prevent a not required redraw from the first redraw call if some more replaints are registered per delay.
    - 2016-09-30 Hartmut bugfix: setFocus() has set the default focus of the primaryWindow if the focus of a window was set.
    - 2016-09-30 Hartmut New idea, concept: GralWidget.ImplAccess.wdgimpl: That refers an implementation of a WidgetHelper class of the implementation layer which knows the widget. Via this aggregation some action with the implementation widget can be do which are defined in the GralWidgetImpl_ifc. See SwtWidgetHelper.
    - 2016-09-18 Hartmut chg: getActionChangeStrict(org.vishia.gral.ifc.GralWidget_ifc.ActionChangeWhen, boolean) documented, changed: returns not null if strict and when==null and a common action is given. Earlier: Returns null in that case.
    - 2016-09-02 Hartmut chg: GralWidget(String, String, char) with a position String is now deprecated. Instead the GralWidget#GralWidget(String, char) which was deprecated till now is the favor again, but with a combination of "@pos=name" as first argument. That can be used for all derived widgets!. Therewith it is more simple to complete the widgets with the capability of usage of a position String. Without "@...=" it is the old behavior of the constructor. Note that the position can be given with GralMng#setPosition(GralPos, float, float, float, float, int, char) etc. too, with numeric values which may be calculated, instead a constant text.
    - 2016-08-31 Hartmut new: isGraphicDisposed() especially used for GralWindow-dispose detection.
    - 2016-07-20 Hartmut chg: invocation of registerWidget one time after its position is known. Either it is in the ctor of GralWidget or it is in the ctor of GralWidget.ImplAccess if the position was assigned later in the graphic thread.
    - 2016-07-20 Hartmut chg: instead setToPanel now createImplWidget_Gthread(). It is a better name.
    - 2016-07-03 Hartmut chg: createImplWidget_Gthread(): If the _wdgImpl is initialized already, this method does nothing. Before: Exception
    - 2016-07-03 Hartmut refact: actionChange: Now the GralWidget_ifc.ActionChange describes the action class and arguments. GralWidget.ConfigData.actionChange1 refers the only one change action, or GralWidget.ConfigData.actionChangeSelect contains more as one change action. specifyActionChange(String, GralUserAction, String[], org.vishia.gral.ifc.GralWidget_ifc.ActionChangeWhen...) sets the only one or special actions, getActionChange(org.vishia.gral.ifc.GralWidget_ifc.ActionChangeWhen) selects a proper one. All derived widgets and implementation are adapted to the new system. The user interface is nearly identical.
    - 2016-07-03 Hartmut chg: it is not derived from GralWidgImplAccess_ifc any more. It was the old concept: An implementing widgets was derived from the GralWidget. The new concept is: An implementing widget is derived from its derived class of GralWidget.ImplAccess. Therefore only that base class implements the GralWidgetImpl_ifc.
    - 2016-07-03 Hartmut chg: handling of visible: A GralWidget is invisible by default. setVisible(boolean) should be invoked on creation. It is possible that widgets are switched. All widgets of a non-visible tab of a tabbed panel are set to invisible, especially GralWidgetBase.bVisibleState = false. The isVisible() is checked to decide whether a widget should be updated in the inspector. Only visible widgets should be updated. The GralWidgImplAccess_ifc.setVisibleGThread(boolean) is implemented to all known widgets for the implementation layer in the kind of #setFocusGThread(). See documentation on the methods.
    - 2015-09-20 Hartmut chg: some final methods now non final, because they have to be overridden for large widgets.
    - 2015-09-20 Hartmut chg: gardening for GralWidget.DynamicData.getChanged(), now private attribute GralWidget.DynamicData.whatIsChanged
    - 2015-09-20 Hartmut new: setActionMouse(GralMouseWidgetAction_ifc, int) was a private thing in SwtGralMouseListener.MouseListenerGralAction for widget implementation's mouse handling. Now as user define-able property of any widget, especially use-able for text fields.
    - 2015-09-12 Hartmut new: getData(), setData(Object) was existent as setContentInfo(Object), now explicit property of any widget. setContentInfo(Object) was an older approach, not in interface, now deprecated.
    - 2015-06-21 Hartmut bugfix: setFocus(int, int) had hanged because while-loop on same window panel for a parent.
    - 2015-01-27 Hartmut new: GralWidget.DynamicData.bTouchedField, ImplAccess##setTouched() especially for a text field if any editing key was received. Then the GUI-operator may mark a text or make an input etc. The setting of the text from a cyclically thread should be prevented then to prevent disturb the GUI-operation. If the focus was lost then this bit is reseted. It is an important feature for GUI-handling which was missed up to now. Yet only used for GralTextField.setText(CharSequence, int). It may prevent redraw for universally usage for all widgets.
    - 2015-01-27 Hartmut new: method getVariable(VariableContainer_ifc) instead getVariableFromContentInfo(VariableContainer_ifc). The last one method is used in an application but it does not run well for all requirements. The code of getVariable(VariableContainer_ifc) is copied from the well tested refreshFromVariable(VariableContainer_ifc) as own routine and then used in a new application.
    - 2014-01-15 Hartmut new: getCmd(int) with options.
    - 2014-01-03 Hartmut new: isInFocus()
    - 2013-12-21 Hartmut chg: redraw() invokes redraw immediately if it is in graphic thread. It invokes redraw(int, int) with the redrawtDelay if it is not in graphic thread. It does nothing if the implementation layer widget is not created yet. It means it can invoked without parameter in any case.
    - 2013-12-21 Hartmut chg: GralWidget.ImplAccess.setDragEnable(int) and setDropEnable moved from the core class. It is adapt after change GralTextField.
    - 2013-12-21 Hartmut new: #setToPanel(GralMngBuild_ifc) is final now and invokes GralMngBuild_ifc.createImplWidget_Gthread(GralWidget). That method handles all widget types.
    - 2013-11-11 Hartmut new: refreshFromVariable(VariableContainer_ifc, long, GralColor, GralColor) which shows old values grayed.
    - 2013-11-11 Hartmut chg: setFocus() searches the GralTabbedPanel where the widget is member of and invokes its GralTabbedPanel#selectTab(String). It is not correct that the graphic implementation layer does that itself.
    - 2013-06-29 Hartmut new: #setToPanel(GralMngBuild_ifc) as common method.
    - 2013-06-16 Hartmut new _wdgImpl. This instance was present in the past but removed. The concept is re-activated because a graphic-implementation-independent GralWidget instance can have any generic types and can be created as composite (with final type name = new Type(...)). See comments of class GralMngBuild_ifc.
    - 2013-03-13 Hartmut new getContentIdent(), setContentIdent(long)
    - 2013-03-13 Hartmut new bShouldInitialize
    - 2012-09-24 Hartmut chg: getName() now returns sDataPath or sCmd if the other info are null.
    - 2012-09-24 Hartmut chg: refreshFromVariable(VariableContainer_ifc) for long and double values.
    - 2012-09-17 Hartmut new GralWidget.ConfigData and cfg, used yet only for GralWidget.ConfigData.showParam.
    - 2012-09-17 Hartmut chg whatIsChanged#whatIsChanged} moved from GralTextField. The concept is valid for all widgets in cohesion with the concept of the whatIsChanged}.
    - 2012-09-17 Hartmut chg setActionShow(GralUserAction, String[]) now with parameters.
    - 2012-08-21 Hartmut new GralWidget.DynamicData and dyda for all non-static widget properties, the dynamic data are that data which are used for all widget types in runtime. TODO: store the configuration data (all other) in an inner class CfgData or in a common class cfgdata see GralCfgData.
    - 2012-08-21 The method setBackColor(GralColor, int), setLineColor(GralColor, int) and setTextColor(GralColor) are declared in the GralWidget_ifc yet and implemented here using dyda.
    - 2012-07-29 Hartmut chg: setFocus() and setFocus(int, int) can be called in any thread yet.
    - 2012-04-25 Hartmut some enhancements
    - 2012-04-07 Hartmut chg: refreshFromVariable(VariableContainer_ifc) regards int16, int8
    - 2012-04-01 Hartmut new: refreshFromVariable(VariableContainer_ifc). A GralWidget is binded now more to a variable via the new VariableAccessWithIdx and then to any VariableAccess_ifc. It is possible to refresh the visible information from the variable.
    - 2012-01-04 Hartmut new: redrawtDelay, use it.
    - 2012-03-31 Hartmut new: isVisible() and GralWidget.ImplAccess.setVisibleState(boolean). renamed: #implMethodWidget_ instead old: 'gralWidgetMethod'.
    - 2012-03-08 Hartmut chg: redrawRequ firstly remove the request from queue before execution, a new request after that time will be added newly therefore, then execute it.
    - 2012-02-22 Hartmut new: catch on #redrawGthread() and continue the calling level because elsewhere the redraw order isn't removed from the org.vishia.gral.base.GralGraphicThread#addDispatchOrder(GralGraphicOrder)-queue.
    - 2012-02-22 Hartmut new: implements GralSetValue_ifc now.
    - 2012-01-16 Hartmut new Concept redraw(), can be invoked in any thread. With delay possible. All inherit widgets have to be implement #redrawGthread().
    - 2011-12-27 Hartmut new setHtmlHelp(String). For context sensitive help.
    - 2011-11-18 Hartmut bugfix: #setFocusGThread() had called GralMng.setFocus(GralWidget) and vice versa. Instead it should be a abstract method here and implemented in all Widgets. See org.vishia.gral.swt.SwtWidgetHelper#setFocusOfTabSwt(org.eclipse.swt.widgets.Control).
    - 2011-10-15 Hartmut chg: This class is now abstract. It is the super class for all wrapper implementations. The wrapper implements special interfaces for the kind of widgets. It is more simple for usage, less instances to know. A GralWidget is able to test with instanceof whether it is a special widget. The element widget is removed because the reference to the implementation widget will be present in the derived classes.
    - 2011-10-01 Hartmut new: method #setFocusGThread(). It wrappes the GralMng_ifc#setFocus(GralWidget).
    - 2011-09-18 Hartmut chg: rename from WidgetDescriptor to GralWidget. It is the representation of a Widget in the graphic adapter inclusive some additional capabilities in comparison to basic graphic widgets, like sFormat etc.
    - 2011-09-11 Hartmut chg: rename itsPanel to #itsMng. The original approach was, that the PanelManager manages only one panel then one window. Now the GralPanelMng manages all panels of one application. It is instantiated only one time. Therefore this association isn't the associated panel where the widget is member of.
    - 2011-09-08 Hartmut new: method setLineColor(GralColor, int). Background: Any widget have a background. Most of widgets have lines. The color of them should be able to animate if user data are changed.
    - 2011-09-04 Hartmut new: method setBackColor(GralColor, int).
    - 2011-08-14 Hartmut chg: #widget is now type of GralWidget_ifc and not Object. Generally it is the reference to the implementing code of the widget. The implementing code may based on a graphic base widget (SWT: Control) and implements the GralWidget_ifc, or it references the graphic base widget instance. The class SwtWidgetSimpleWrapper is able to wrap simple graphical base widget instances.
    - 2011-08-13 Hartmut new: WidgetDescriptor now contains the position of the widget. It is used for resizing of large widgets. A large widget is a widget, which lengthens over the panel and it is changed in size with panel size change. A typical example is a text-area-widget.
    - 2011-06-20 Hartmut new: method GralWidgetBase.gralMng() It is the panel manager!
    - 2011-05-26 Hartmut new: separate action in #actionChanging and #actionShow. The actionChanging was the old action. It was called from the listener of the widgets of the underlying graphic if any changing is done on the widget (mouse click etc). But the actionShow is necessary too to prepare values to animate widgets without knowledge of the special kind of widget. The application should call only the actionShow, all specifics should be done in the action.
    - 2011-05-22 Hartmut new: The Widget knows its itsCfgElement now if it is present. It is possible to configurate widgets with the GralDesigner up to now.
    - 2011-05-14 Hartmut chg: The WidgetDescriptor is now non-generic. Older Concept: Store the GUI implementation widget type as generic type there. But now a widget is stored as Object and it is casted in the implementation. It is more simple because the type is only used and the casting is only necessary in the implementation level.
    - 2011-06-00 Hartmut created
    Copyright/Copyleft:
    For this source the LGPL Lesser General Public License, published by the Free Software Foundation is valid. It means:
    1. You can use this source without any restriction for any desired purpose.
    2. You can redistribute copies of this source to everybody.
    3. Every user of this source, also the user of redistribute copies with or without payment, must accept this license for further using.
    4. But the LPGL is not appropriate for a whole software product, if this source is only a part of them. It means, the user must publish this part of source, but doesn't need to publish the whole source of the own product.
    5. You can study and modify (improve) this source for own using or for redistribution, but you have to license the modified sources likewise under this LGPL Lesser General Public License. You mustn't delete this Copyright/Copyleft inscription in this source file.
    If you intent to use this source without publishing its usage, you can get a second license subscribing a special contract with the author.
    See Also:

    Constant Field Values
  - _wdgImpl
```
public GralWidget.ImplAccess _wdgImpl
```
    The implementation specific widget. The instance is derived from the graphic implementation-specific super class of all widgets such as org.eclipse.swt.widgets.Control or Component. The user can check and cast this instance if some special operations may be need graphic-implementation-dependent. It is recommended that implementation specific features should not used if they are not necessary and the application should be held graphic implementation independent.

    This reference is null if the implementation independent GralWidget is only created yet, and the implementation is not created till now. Call of createImplWidget_Gthread() creates the implementation.
  - XXXbuildMng
```
protected GralMngBuild_ifc XXXbuildMng
```
  - itsCfgElement
```
private GralWidgetCfg_ifc itsCfgElement
```
    Association to the configuration element from where this widget was built. If the widget is moved or its properties are changed in the 'design mode' of the GUI, this aggregate data are adjusted and re-written to a file. The configuration elemenet contains all data which are necessary to build the appearance of the GUI.
    If this aggregation is null, the widget can't be changed in the design mode of the GUI. It is created directly without configuration data.
  - cfg
```
public GralWidget.ConfigData cfg
```
    Reference to the common configuration data for widgets. See the inner class GralWidget.ConfigData. It is a sub structure. It has no cohesion with the itsCfgElement.
  - whatIs
```
public final char whatIs
```
    numeric info what to do (kind of widget).
    - B: a Button: has a color, has an action method.
    - c: curve view
    - C: traCk of curve view
    - D: a LED
    - xxx E: an edit field, 1 line
    - xxx e: an edit area
    - F: input file selection field
    - f: GralFileSelector
    - h; HTML text box (browser)
    - I: a line
    - i: an image
    - k: a tree node
    - K: a tree leafe
    - l: a list or table
    - L: a list or table line
    - M: a Menu entry
    - n: a Horizontal Selector
    - r: a rectangle area
    - P: a plot or canvas area
    - R: a rectangle line
    - S: a text field to show
    - s: a text area.
    - T: a text input field
    - t: a text input area.
    - U: a graphical value representation (bar etc)
    - V: a graphical value enter representation (slider etc)
    - w: A window.
    - ^: A tabbed panel, for tab panels
    - @: A Panel as tab of a tabbed panel
    - $: Any Panel (composite)
    - &: A without implementation
    - +: A canvas panel
    - *: A type (not a widget, common information) See GralCfgData.new_Type()
    - 9: GralArea9Panel
  - sToolTip
```
public java.lang.String sToolTip
```
  - sDataPath
```
private java.lang.String sDataPath
```
    Textual informations about content. It may be a data path or adequate.
  - contextMenu
```
protected GralMenu contextMenu
```
    If not null, it is the right-mouse-button menu for this widget.
  - dataIx
```
private int dataIx
```
    An index associated to the data.
  - sFormat
```
protected java.lang.String sFormat
```
    Textual info about representation format. See usage in GralTextField.
  - variable
```
private VariableAccess_ifc variable
```
    One variable which is associated with this widget. This reference may be null. Alternatively variables may be set. See getVariableFromContentInfo(VariableContainer_ifc). See setValue(float), #setValue(String). See #indices to use an array- or bit-variable.
  - variables
```
private java.util.List<VariableAccess_ifc> variables
```
    More as one variable which are associated with this widget. This reference may be null. Alternatively variable may be set. See getVariableFromContentInfo(VariableContainer_ifc). See setValue(float), #setValue(String). See #indices to use an array- or bit-variable.
  - sCmd
```
public java.lang.String sCmd
```
    Any widget can have a command String, which can be quest for example in an action. The widget can be identified by its getCmd() independent of its name.
  - htmlHelp
```
protected java.lang.String htmlHelp
```
    The relative path to a html help label (maybe an URL, or file, or file with label).
  - oContentInfo
```
private java.lang.Object oContentInfo
```
    Any special info, may be set from any user class. It should help to present the content. This info can be set and changed after registration.
  - bEditable
```
protected boolean bEditable
```
    Set to true on setEditable(boolean). With that designation the cyclically refresh of the text field can be prevented.
  - bShouldInitialize
```
protected boolean bShouldInitialize
```
    If this bit is true on an edit field, it should be initialized.
  - redrawtDelay
```
protected int redrawtDelay
```
    Standard delay to redraw if redraw() is called without arguments. It delays a few time because an additional process can be occur in a short time after, and only one redraw should be invoked. The redrawDelayMax limits are shifting to the future. See org.vishia.event.TimeOrder, that is used.
  - redrawDelayMax
```
protected int redrawDelayMax
```
    Standard delay to redraw if redraw() is called without arguments. It delays a few time because an additional process can be occur in a short time after, and only one redraw should be invoked. The redrawDelayMax limits are shifting to the future. See org.vishia.event.TimeOrder, that is used.
  - lastTimeSetVisible
```
long lastTimeSetVisible
```
    The time when the bVisible state was changed.
  - dateUser
```
protected long dateUser
```
  - dyda
```
protected final GralWidget.DynamicData dyda
```
  - whenAll
```
private static GralWidget_ifc.ActionChangeWhen[] whenAll
```
    Contains all actions only to store a single action in
  - redrawRequ
```
private final GralGraphicOrder redrawRequ
```
    This time order calls the #redrawGthread() in the graphical thread for this widget. It is used with delay and wind up whenever redraw1(int, int) with an delay is called. If its executeOrder() runs, it is dequeued from timer queue in the GralGraphicThread till the next request of redraw1(int, int) or redraw().
  - showWidgetInfo
```
GralUserAction showWidgetInfo
```
- Constructor Detail
  - GralWidget
```
@Deprecated
public GralWidget(java.lang.String pos,
                               java.lang.String name,
                               char whatIs)
```
    Deprecated. since 2016-09: May use always GralWidget#GralWidget(String, char) if levels above are proper
    Creates a widget. It is the compatibility-version for separated pos and name. But the idea is: Use always one String for "@pos=name". If the pos is null then the name may contains this "@pos=name" string. Hence an adaption on user level is possible:
```
 if(name.startsWith("@") {
   ... = new SpecificGralWidget(null, name,...);  // parameters are separateted pos, name)
  else {
   --- = new SpecificGralWidget(givenPos, name);
 }
```
    Parameters:

    posString - If null then the widget is not positioned. !=null then a position string. The position is taken relative to the GralMng.pos(), the GralMng.pos() is changed see GralPos.setPosition(CharSequence, GralPos)

    sName - If posString is null and sName has the form "@pos = name" then this is a combination from name and pos. The name should be unified to indent a widget by its name.

    whatIs -

    Throws:

    java.text.ParseException
  - GralWidget
```
public GralWidget(GralPos currPos,
                  java.lang.String posName,
                  java.lang.String name,
                  char whatIs,
                  GralMng gralMng)
```
    Constructs the widget with a maybe separately given position string. It should only be used if this is the signature of the derived widget.

    Parameters:

    currPos -

    posName - can be null if only name is given, can contain "" or also "@ = name"

    name - if posName == null, should be given as name, can be null if name is defined by posName writing "... = name"

    whatIs - See whatIs, type of widget.
  - GralWidget
```
public GralWidget(GralPos currPos,
                  java.lang.String posName,
                  java.lang.String name,
                  char whatIs)
```
  - GralWidget
```
protected GralWidget(GralPos currPos,
                     java.lang.String sPosName,
                     char whatIs)
```
  - GralWidget
```
public GralWidget(GralPos refPos,
                  java.lang.String sPosName,
                  char whatIs,
                  boolean isComposite)
```
    Creates a widget.

    Parameters:

    currPos - The position, absolute. This is either the given ready to use position or the basic of a relative position given in the posName argument.
    If null then the GralMng.pos() is used, the argument gralMng should be given. A given position in the posName argument is written back to this given instance, also on given absolute positions. Especially for relative positions to the previous widgets this is sensible. For internal use the position info are cloned to a internal separated position instance aggregated by the widget. It means the given currPos argument can be changed afterwards, especially to calculate new positions from the current one. if this argument is null, the central singleton position in the GralMng is used. Then the thread safety is not given.

    sPosName - can have the form "@pos = name" then this is a combination from position string and name.
    * The name should be unified to indent a widget by its name for the whole application.
    * The position string will be applied to the given currPos.
    * Syntax of pos: see GralPos.setPosition(CharSequence, GralPos). It is the same syntax as in textual config scripts.

    whatIs - See whatIs

    gralMng - should be given if currPos is not given, to work with a dedicated GralMng, not with the singleton. If currPos is given and valid, this argument can be null.
  - GralWidget
```
@Deprecated
public GralWidget(java.lang.String sName,
                               char whatIs,
                               GralMng mng)
```
    Deprecated.
- Method Detail
  - createImplWidget_Gthread
```
public boolean createImplWidget_Gthread()
                                 throws java.lang.IllegalStateException
```
    Creates the implementation widget instance(s). This routine should be called only one time after the Gral widget was created. It creates the graphical appearance using the capabilities of the derived GralMng for the systems graphic level. This operation invokes the abstract operation GralMng.ImplAccess.createImplWidget_Gthread(GralWidget) which is implemented in the derived Mng instances for the implementation graphic. It tests the type of the derived GralWidget to create the correct graphical implementation widget.
    The implementation of a widget is firstly a class which is inherit from GralWidget.ImplAccess. With them the GralWidget is references because it is the environment class. The implementation graphical widget is an aggregation in this instance. It is possible that more as one implementation widget is used for a Gral Widget implementation. For example a text field with a prompt consists of two implementation widgets, the text field and a label for the prompt.

    Positioning and Registering the widget: That is clarified by the GralWidgetBase._wdgPos of the Gral widget. The GralPos can contain relative or negative values from bottom or left. It means for the particular position the area of the panel where the widget is positioned is necessary to calculate.

    This operation is or should be overridden for the GralPanelContent, GralWindow and all comprehensive widgets which contains from more as one basic widget. The overridden operation should call this operation for the the basically widgets for the implementation. The overridden operations may be called firstly this operation as super.createImplWidget_Gthread() if the derived class has also a basic implementation widget as parent. Or it shold call firstly #checkImplWidgetCreation(). On both, return false should prevent creation of the internal widgets. This is so for GralWindow and GralPanelContent, see GralWindow.createImplWidget_Gthread() and createImplWidget_Gthread().

    Overrides:

    createImplWidget_Gthread in class GralWidgetBase

    Returns:

    true if created.

    Throws:

    java.lang.IllegalStateException - This routine can be called only if the graphic implementation widget is not existing. It is one time after startup or more as one time if #removeWidgetImplementation() was called.
  - setToPanel
```
public void setToPanel(GralMng gralMng)
```
  - removeImplWidget_Gthread
```
public void removeImplWidget_Gthread()
```
    Removes the implementation widget, maybe to re-create with changed properties or also if the GralWidget itself should be removed. This is a internal operation not intent to use by an application. It is called from the GralMng.runGraphicThread() and hence package private.

    Overrides:

    removeImplWidget_Gthread in class GralWidgetBase
  - getGralWidget
```
public GralWidget getGralWidget()
```
    Returns this.

    Specified by:

    getGralWidget in interface GetGralWidget_ifc

    See Also:

    GetGralWidget_ifc.getGralWidget()
  - setPrimaryWidgetOfPanel
```
public void setPrimaryWidgetOfPanel()
```
    Default implementation:Most of widgets may have only one implementation widget. This returns null.

    See Also:

    org.vishia.gral.ifc.GralWidget_ifc#getWidgetMultiImplementations()
  - getName
```
@Deprecated
public java.lang.String getName()
```
    Deprecated.

    Description copied from class: GralWidgetBase

    Access to the name of the widget. But you can also access the final public GralWidgetBase.name immediately. Defined in GralWidgetBase_ifc.getName()

    Specified by:

    getName in interface GralWidgetBase_ifc

    Overrides:

    getName in class GralWidgetBase

    Returns:

    the name
  - setContentInfo
```
public void setContentInfo(java.lang.Object content)
```
    Deprecated. use setData(Object)

    Sets a application specific info. It should help to present user data which are associated to this widget. This info can be set and changed anytime.

    Specified by:

    setContentInfo in interface GralSetValue_ifc
  - getContentInfo
```
public java.lang.Object getContentInfo()
```
    Deprecated. use getData()

    Gets the application specific info. See setContentInfo(Object).

    Specified by:

    getContentInfo in interface GralSetValue_ifc

    Specified by:

    getContentInfo in interface GralWidget_ifc
  - setData
```
public void setData(java.lang.Object data)
```
    Sets a application specific data. It should help to present user data which are associated to this widget. This info can be set and changed anytime.

    Specified by:

    setData in interface GralWidget_ifc
  - getData
```
public java.lang.Object getData()
```
    Gets the application specific info. See setData(Object).

    Specified by:

    getData in interface GralWidget_ifc
  - setEditable
```
public void setEditable(boolean editable)
```
    Description copied from interface: GralWidget_ifc

    Sets whether it is able to edit the content of the text field or text box. If a content is not able to edit, it is a showing field or box. The user can't change the content. But the user can set the cursor, select any text and copy to the systems clipboard. If the content is able to edit, the change should be notified and the content should be gotten. To do that TODO

    Specified by:

    setEditable in interface GralWidget_ifc

    Parameters:

    editable - true then the content is going to be able to change. False then the edit functionality is disabled.
  - isEditable
```
public boolean isEditable()
```
    Description copied from interface: GralWidget_ifc

    Query whether this widget is able to change from user handling.

    Specified by:

    isEditable in interface GralWidget_ifc
  - isNotEditableOrShouldInitialize
```
public boolean isNotEditableOrShouldInitialize()
```
    Description copied from interface: GralWidget_ifc

    Query whether this field should be written from any initial or actual data.

    Specified by:

    isNotEditableOrShouldInitialize in interface GralWidget_ifc
  - setDataPath
```
public void setDataPath(java.lang.String sDataPath)
```
    Sets the data path. It is a String in application context.

    Specified by:

    setDataPath in interface GralSetValue_ifc

    Specified by:

    setDataPath in interface GralWidget_ifc

    Parameters:

    sDataPath -
  - getDataPath
```
public java.lang.String getDataPath(java.lang.String sDataPath)
```
    Changes the data path

    Parameters:

    sDataPath - the new one

    Returns:

    the last one.
  - getCmd
```
public java.lang.String getCmd()
```
    Any widget can have a command String, which can be quest for example in an action. The widget can be identified by this method independent of its name. See setCmd(String).

    Specified by:

    getCmd in interface GralWidget_ifc
  - getCmd
```
public java.lang.String getCmd(int option)
```
    Get the command string from the setCmd(String) with choice of an option. The command string should have the form "base[Option1|Option2|Option3]End" whereby base and end can be empty. if option is <0 an IndexOutOfBoundsException is thrown. If option is >= the given number of options, the option part is replaced by "??". That may be more helpfull to detect errors.

    Parameters:

    option - number >=0

    Returns:

    "baseOptionEnd"
  - setCmd
```
public void setCmd(java.lang.String cmd)
```
    Any widget can have a command String, which can be quest for example in an action. The widget can be identified by its getCmd() independent of its name which can be set on runtime with this method.

    Specified by:

    setCmd in interface GralWidget_ifc
  - getDataPath
```
public java.lang.String getDataPath()
```
    Gets the data path. It is a String in application context.

    Specified by:

    getDataPath in interface GralSetValue_ifc

    Specified by:

    getDataPath in interface GralWidget_ifc

    Returns:

    the last one.
  - setActionChange
```
@Deprecated
public void setActionChange(GralUserAction action)
```
    Deprecated. use instead specifyActionChange(String, GralUserAction, String[], org.vishia.gral.ifc.GralWidget_ifc.ActionChangeWhen...) possible in form 'specifyActionChange(null, action, null);'
    Sets the action in application context for processing of user handling for the widget. Handling means, pressing button, user inputs of text fields The method GralUserAction.exec(int, GralWidget_ifc, Object...) will be called with following key codes:
    - KeyCode#focusGained, KeyCode#focusLost on enter and leave a text field.
    - KeyCode#mouse1Down etc, any mouse events on any widget.
    - KeyCode#valueChanged if the content of a text field is changed.
    - Some more TODO, set breakpoint in the routine.
    Parameters:

    action - any instance. Its action method is invoked depending of the type of widget usual if the user takes an action on screen, press button etc.
  - specifyActionChange
```
public void specifyActionChange(java.lang.String sAction,
                                GralUserAction action,
                                java.lang.String[] args,
                                GralWidget_ifc.ActionChangeWhen... when)
```
    Sets the action to invoke after changing or touching the widget due to GUI handling.

    Parameters:

    sAction - maybe null, String for visualization, especially menu entry for context menu.

    action - The action. null admissible to remove the existing action.

    args - possible arguments for the action or null

    when - List of type of action, maybe empty, then the given action is set for all conditions. Especially setActionChange(null, null, null) removes all actions.
  specifyActionChangeWhen private void specifyActionChangeWhen(GralWidget_ifc.ActionChange action, GralWidget_ifc.ActionChangeWhen when) specifyContextMenu public void specifyContextMenu(GralMenu menu) getActionChange public GralWidget_ifc.ActionChange getActionChange(GralWidget_ifc.ActionChangeWhen when) Gets the action to execute on changing a widget. If only one action is given with setActionChange(String, action, args) without a specified when then this action is returned in any case, especially if when == null. If specific actions were set, this action is returned, or null. Specified by: getActionChange in interface GralWidget_ifc Parameters: when - type of action, if null then returns the only one given action or null if only specific actions are given Returns: null if the action is not set. getActionChangeStrict public GralWidget_ifc.ActionChange getActionChangeStrict(GralWidget_ifc.ActionChangeWhen when, boolean strict) Gets the action to execute on changing a widget. If only one action is given with setActionChange(String, action, args) without a specified when then this action is returned in any case, especially if when == null. If specific actions were set, this action is returned, or null. Parameters: when - type of action, if null then returns the only one given action or null if only specific actions are given strict - if true then a common action without when-designation is not returned if when is not null. Returns: null if the action is not set. setActionMouse public void setActionMouse(GralMouseWidgetAction_ifc mouseWidgetAction, int mUser) Sets the action for mouse operation. Either it is a special mouse handler or the setActionChange(GralUserAction) is used with KeyCode#mouse1Down etc. key code. It works with all widgets which uses SwtGralMouseListener.MouseListenerGralAction respectively the adequate implementation mouse listener. By contract of Gral, all widgets should add the mouse listener. Therefore no further special action is necessary to activate the requested mouse behavior. Note: If you set an abbreviate mouse handler for Button etc. where the mouse is an essential functionality that functionality is disturbed. An extra handler should base on that special mouse handler, for example GralButton.MouseActionButton and should invoke that actions calling super.mouse1Down(...) etc. For that widgets usual the setActionChange(GralUserAction) is called also, that may be sufficient. Parameters: mouseWidgetAction - null possible, elsewhere the mouse operation callback instance. mUser - One or more of the bits GralMouseWidgetAction_ifc.mUser1down etc. If given the setActionChange(GralUserAction) is invoked with that operation instead the given (or usually not given) mouseWidgetAction. setActionShow public void setActionShow(GralUserAction action, java.lang.String[] param) Sets the action in application context which is invoked for applying user data to show in the widget. The invocation of the action should be organized in the user context, maybe cyclically for all widgets of visible windows or if any data are received. In the action the user should read any data from its application and invoke setValue(int, int, Object, Object) after data preparation to display the value. Because the GralWidget is given as parameter, the implementation can use the information for example sDataPath or sFormat. The implementation of the action can be done in the users context in a specialized form, or some standard actions can be used. See notes of getActionShow(). To get the action in a script context (GuiCfgBuilder) some actions can be registered using GralMngBuild_ifc.registerUserAction(String, GralUserAction). They are gotten by name invoking GralMngBuild_ifc.getRegisteredUserAction(String) in the GralCfgBuilder. Parameters: action - The action instance. param - maybe param for the show method. getActionShow public GralUserAction getActionShow() Gets the action to show the widget. This method is helpfully to invoke showing after receiving data in the users context. Invoke GralUserAction.userActionGui(String, GralWidget, Object...) with this WidgetDescriptor and additional user data. The implementation of that method may be done in the users context but in another module or the implementation may be given in any library superordinated to this graphic adapter library but subordinated in respect to the explicit application. The usage of a show method given in the implementation of GralUserAction helps to separate the invocation of showing and the decision what and how is to show. setActionFocused public void setActionFocused(GralUserAction action) getActionFocused public GralUserAction getActionFocused() getsToolTip public java.lang.String getsToolTip() setToolTip public void setToolTip(java.lang.String sToolTip) setDragEnable public void setDragEnable(GralUserAction action, int dragType) Sets the action to receive a drop event and initializes the drop feature of the widget. For drag file the 'drag get action' method will be offered in the params[0] a String[][] reference. This String reference array has to be filled with the absolute path of the file using String[0][0]. After that callback invocation a drag file object will be created therewith internally. Parameters: action - The drag file get action. dropType - one of org.vishia.util.KeyCode#dropFiles or ..dropText getActionDrag public GralUserAction getActionDrag() setDropEnable public void setDropEnable(GralUserAction action, int dropType) Sets the action to receive a drop event and initializes the drop feature of the widget. Parameters: action - The action will be called dropType - one of org.vishia.util.KeyCode#dropFiles or ..dropText getActionDrop public GralUserAction getActionDrop() getShowMethod public java.lang.String getShowMethod() getDataIx public int getDataIx() Specified by: getDataIx in interface GralSetValue_ifc setDataIx public void setDataIx(int dataIx) Specified by: setDataIx in interface GralSetValue_ifc getShowParam public java.lang.String[] getShowParam() Returns the parameter of the show method. The parameters for the show-method are given as "showMethod(param, param, ...)" while calling setActionShow(GralUserAction, String[]). They are split in extra Strings, this Returns: clearShowParam public void clearShowParam() Clear the parameter if they are over-taken already. getFormat public java.lang.String getFormat() setFormat public void setFormat(java.lang.String sFormat) getContextMenu public GralMenu getContextMenu() Gets the context menu to add a menu item. If this widget hasn't a gral context menu, then the context menu is created by calling GralMng#addContextMenu(GralWidget). If the widget has a context menu already, it is stored in the reference contextMenu. Returns: the context menu root for this widget. setHtmlHelp public void setHtmlHelp(java.lang.String url) For context sensitive help, it assigns a part of a URL to the widget which has the focus gained. If this widget is in focus, it calls GralMngApplAdapter_ifc.setHelpUrl(String) exactly with the given stored value to set the help url of the application. Specified by: setHtmlHelp in interface GralWidget_ifc Parameters: url - A ":file.html#label" or ":localdir/file.html#label" or also "suffix.html#label" (also without "#label" to add this part to the central help path given by org.vishia.gral.area9.GralArea9_ifc#setHelpBase(String) which describes the html help url in an local context. The origin of the url is given with a global context of the help window. If url is an absolute path then it is used as is. If it does not start with a ":" then is should be used as relative path related to the application's current directory. getHtmlHelp public java.lang.String getHtmlHelp() setVariable public void setVariable(VariableAccess_ifc variable) Sets a variable associated to the widget to refresh with a value. For refreshing call refreshFromVariable(VariableContainer_ifc). The variable can be set independent from a given setDataPath(String) but also depending on a getDataPath() especially from config reading. On a new called setDataPath(String) this variable association is loss. This is intent to associate a new variable. On refreshFromVariable(VariableContainer_ifc) also this association with the maybe newly setDataPath(String) is done. Parameters: variable - Any variable from anywhere. getVariableFromContentInfo @Deprecated public VariableAccess_ifc getVariableFromContentInfo(VariableContainer_ifc container) Deprecated. Gets the info to access the values for this widget in the users context. If this method is called the first time for the widget after start the application, the access info is searched in the container calling VariableContainer_ifc#getVariable(String, int[]) with the stored textual info setDataPath(String) and setDataIx(int). This operation may need a little bit of calculation time, which were to expensive if a lot of widgets should be provided with user values. Therefore the returned VariableAccess_ifc instance is stored in the oContentInfo of the widget and returned on the further calls. The returned VariableAccess_ifc should be allow the fast access to users values. Parameters: container - The container where all VariableAccess_ifc should be found. Returns: The access to a user variable in the user's context, null if the data path is empty. getVariable public VariableAccess_ifc getVariable(VariableContainer_ifc container) refreshFromVariable public void refreshFromVariable(VariableContainer_ifc container) Description copied from interface: GralWidget_ifc Capability for any widget to update its content from its associated variables described in its sDataPath. Specified by: refreshFromVariable in interface GralWidget_ifc Parameters: container - The container is used only if the variable is not known by direct reference in the private variable or variables. If the variable(s) is/are not known, they are searched by there data path set by GralWidget_ifc.setDataPath(String). More as one variables are possible separated by "," in the setDataPath("variable1, variable2"). The variables are searched in the container calling VariableContainer_ifc#getVariable(String). refreshFromVariable public void refreshFromVariable(VariableContainer_ifc container, long timeLatest, GralColor colorRefreshed, GralColor colorOld) Refreshes the graphical content with the content of the variables. First time if a variables is not associated the variable is searched in the container by the given setDataPath(String). The next times the variable is used independent of the reference to the container and independent of the data path. If setDataPath(String) was called again, the variables are searched in the container newly. If the data path contains ',' as separator, more as one variable is associated. Specified by: refreshFromVariable in interface GralWidget_ifc Parameters: container - contains variables able to search by string. timeLatest - The absolute time stamp after them the variable should be gotten a new value. It may be for example some seconds before the current time. colorRefreshed - show with this background color if refreshed colorOld - show with this background color if not refresehed. requestNewValueForVariable public void requestNewValueForVariable(long timeRequested) Requests new values for all variables which are associated to this widget. This method is usefull if the variables are filled by a communication with any remote device and that filling should be requested for the current visible variables. getValue public java.lang.String getValue() Gets the current value of the content of the widget in the given context. Parameters: gralMng - The context. Returns: The value in String representation, null if the widget has no possibility of input. isVisible public boolean isVisible() Description copied from interface: GralWidgetBase_ifc Returns whether the widget is visible or not. This method can be invoked in any thread. It is an estimation because the state of the widget may be changed in the last time or a window can be covered by another one. The widget is not visible if it is a member of a card in a tabbed panel and that tab is not the selected one. Specified by: isVisible in interface GralWidgetBase_ifc Overrides: isVisible in class GralWidgetBase Returns: true if the widget seams to be visible. isInFocus public boolean isInFocus() Description copied from interface: GralWidgetBase_ifc Returns true if this widget is the focused one. Specified by: isInFocus in interface GralWidgetBase_ifc isGraphicDisposed public boolean isGraphicDisposed() Description copied from interface: GralWidget_ifc Returns true if the graphic implementatin widget was initialized, and then it was disposed. It is able to use especially to detect whether a sub window is closed or if the primary window was closed, to finish any other (waiting) thread. It may be used on any disposed widget. Specified by: isGraphicDisposed in interface GralWidget_ifc Returns: true if the Widget was created and after them disposed again. setVisible public boolean setVisible(boolean visible) Sets the widget visible or not. It is the default implementation for all simple widgets: Sets GralWidget.ImplAccess.chgVisible or GralWidget.ImplAccess.chgInvisible in GralWidget.DynamicData.setChanged(int) and invokes redraw() with the redrawtDelay and redrawDelayMax the GralWidgetBase.bVisibleState is set due to argument, hence immediately isVisible() returns this state. The implementation widget is set visible or not a little bit later due to the time order if this is not the graphic thread. The state of the implementing graphics for sub widgets can be differ. If a parent widget is invisible, all sub widgets of the implementing graphic are also. But this state is not in any case transferred to all sub gral widgets. This problem may be solved in future TODO. In the moment all seems proper. The visibility of the implementation widget is changed by redraw(int, int) immediately in the graphic thread with the GralWidget.ImplAccess.chgInvisible or GralWidget.ImplAccess.chgVisible Specified by: setVisible in interface GralWidgetBase_ifc Specified by: setVisible in class GralWidgetBase Parameters: visible - the state to set newly. Returns: the old state of visibility. isChanged public boolean isChanged(boolean setUnchanged) Description copied from interface: GralWidget_ifc Returns true if the content is changed from a user action on GUI. Specified by: isChanged in interface GralWidget_ifc Parameters: setUnchanged - If true then set to unchanged with this call. Returns: true if the content was changed since last setUnchanged. setValue public void setValue(int cmd, int ident, java.lang.Object visibleInfo) Sets the current value of the content of the widget in the given context. Parameters: cmd - see GralMng_ifc#cmdSet etc. It is possible to set the color etc. ident - Any number to specify set, maybe 0 value - The value in the necessary representation. setBackColor public void setBackColor(GralColor color, int ix) Description copied from interface: GralWidget_ifc Sets the background color for the widget. It supports widgets with more as one background color by an index. The usage of the index is widget-specific. An index -1 should mean: All backgrounds. ix=0 means the first background. Specified by: setBackColor in interface GralWidget_ifc Parameters: color - Any color ix - -1 for non-specific, 0 for the first color or if only one color is supported, 1, ... if the widget has more as one background. getBackColor public GralColor getBackColor(int ix) Description copied from interface: GralWidget_ifc Gets the background color for the widget. Specified by: getBackColor in interface GralWidget_ifc Parameters: ix - 0 if only one color is supported, 1, ... if the widget has more as one background. Returns: color Any color setLineColor public void setLineColor(GralColor color, int ix) Description copied from interface: GralWidget_ifc Sets the line color for the widget. Specified by: setLineColor in interface GralWidget_ifc Parameters: color - Any color ix - 0 if only one color is supported, 1, ... if the widget has more as one line. setTextColor public void setTextColor(GralColor color) Description copied from interface: GralWidget_ifc Sets the text color for the widget. Specified by: setTextColor in interface GralWidget_ifc Parameters: color - Any color setValue public void setValue(int cmd, int ident, java.lang.Object visibleInfo, java.lang.Object userData) Sets the current value of the content of the widget in the given context. Parameters: cmd - see GralMng_ifc#cmdSet etc. It is possible to set the color etc. ident - Any number to specify set, maybe 0 value - The value in the necessary representation. setValue public void setValue(float value) Sets a value to show. Specified by: setValue in interface GralSetValue_ifc Parameters: value - This routine may be overridden by some specialized widgets. setLongValue public void setLongValue(long value) Sets a value to show. Specified by: setLongValue in interface GralSetValue_ifc Parameters: value - This routine may be overridden by some specialized widgets. getFloatValue public float getFloatValue() Gets the float attribute value of this widget. Returns 0.0 if a float value is never used. getLongValue public float getLongValue() Gets the float attribute value of this widget. Returns 0.0 if a float value is never used. setValue public void setValue(java.lang.Object[] value) Sets some value to show any content. Specified by: setValue in interface GralSetValue_ifc Parameters: value - This routine may be overridden by some specialized widgets. setText public void setText(java.lang.CharSequence text) Description copied from interface: GralWidget_ifc Set the text of the widget. If the widget is a button, the standard button text is changed. If it is a window, its title is changed. Concept of changing a widget from application: Here the generally approach is described, appropriate for this method, but in the same kind for all methods to set something like GralWidget_ifc.setBackColor(GralColor, int) etc. With the set methods the user stores the text, color etc. in graphic-independent attributes. Then the method GralWidget_ifc.redraw(int, int) is invoked with the standard delay of #redrawtDelay and #redrawDelayMax. With that the widget-specific private instance of #repaintRequ is added to the queue of requests in the GralGraphicThread#addTimeEntry(GralGraphicOrder). In the requested time that dispatch order is executed in the graphic thread. It calls GralWidgImplAccess_ifc.redrawGthread(). That method is implemented in the graphic implementation layer of the widget. It sets the appropriate values from the independent Gral attributes to the implementation specifics and invoke a redraw of the graphic layer. If more as one attribute is changed one after another, only one instance of the GralGraphicOrder is queued. All changed attributes are stored in DynamicData#whatIsChanged and the GralWidgImplAccess_ifc.redrawGthread() quests all changes one after another. It means that a thread switch is invoked only one time per widget for more as one change. See DynamicData. That composite part of a widget stores all standard dynamic data of a widget. Specified by: setText in interface GralSetValue_ifc Specified by: setText in interface GralWidget_ifc getText public java.lang.String getText() Get the text of this widget. It can be invoked in any thread. If it is a edit able text field, it returns the current text after focus lost or pressing any control key. Returns: The current text. setMinMax public void setMinMax(float minValue, float maxValue) Sets the border of the value range for showing. If it is a ValueBar, for exmaple, it is the value for 0% and 100% This routine is empty per default, should be overridden if it is necessary. Specified by: setMinMax in interface GralSetValue_ifc Parameters: minValue - maxValue - setContentIdent public long setContentIdent(long date) Description copied from interface: GralWidget_ifc Sets a identification for the shown data. A widget may not need to refresh if the contentIdent is not changed. A refresh of a widget's content may have side effects in user handling such as selection of text etc. See GralWidget_ifc.getContentIdent(). Specified by: setContentIdent in interface GralWidget_ifc Parameters: date - any number which identifies the value of content. Returns: the last stored ident. getContentIdent public long getContentIdent() Description copied from interface: GralWidget_ifc Gets the content identification of the users data which are set with GralWidget_ifc.setContentIdent(long). Specified by: getContentIdent in interface GralWidget_ifc setCfgElement public void setCfgElement(GralWidgetCfg_ifc cfge) getCfgElement public GralWidgetCfg_ifc getCfgElement() setFocus public void setFocus() Standard implementation. Override only if necessary for sepcial handling. Specified by: setFocus in interface GralWidgetBase_ifc See Also: GralWidgetBase_ifc.setFocus() setFocusedWidget public void setFocusedWidget(GralWidgetBase_ifc widg) The default implementation is empty. It is valid for simple widgets which have not sub widgets. Specified by: setFocusedWidget in interface GralWidgetBase_ifc Parameters: widg - The sub widget which should be focused. It influences for example the current tab of a tabbed panel, or influences which widget of a comprehensive widget is first focused. On a panel it determines which widget should get the focus if the panel gets the focus. setFocus public void setFocus(int delay, int latest) Sets the focus to this widget. This method is possible to call in any thread. If it is called in the graphic thread and the delay = 0 or negative, then it is executed immediately. Elsewhere the request is stored in the graphic thread execution queue and invoked later. If the widget is inside a tab of a tabbed panel, the tab is designated as currently therewith. That is done in the calling thread because it is a thread safe operation. Specified by: setFocus in interface GralWidget_ifc Specified by: setFocus in interface GralWidgetBase_ifc Parameters: delay - Delay in ms for invoking the focus request latest - getFocusedWidget public GralWidgetBase_ifc getFocusedWidget() Default implementation for a widget without children Specified by: getFocusedWidget in interface GralWidgetBase_ifc Returns: null, nonsense. getImplWidget public java.lang.Object getImplWidget() Returns the implementation widget or its Wrapper. Need cast due to implementation level. Specified by: getImplWidget in interface GralWidget_ifc Returns: null if implementation is not existing. getItsPanel public GralPanelContent getItsPanel() Gets the panel where the widget is member of. Returns: The panel. redraw public void redraw() Description copied from interface: GralWidget_ifc repaint request. It can be called in any thread. If it is called in the graphic thread, the repaint action is executed immediately in the thread. Elsewhere the graphic thread will be waken up in the standard repaint time (about 100 ms). If this routine is invoked more as one time before the standard repaint time expires and not in the graphic thread, then the repaint is executed only one time after the given delay with the last set data. See GralWidget_ifc.redraw(int, int) Specified by: redraw in interface GralWidget_ifc redraw public void redraw(int delay, int latest, boolean onlyDynamics) The Implementation of redraw calls #redrawGthread() if it is the graphic thread and the delay is 0. Elsewhere the redrawRequ is added as request to the graphic thread. Parameters: delay - in ms to prevent too much calls of the graphic system If delay is negative, and this operation is called in the graphic thread, it is executed immediately. Else the absolute is used as delay. latest - in ms to prevent to much procrastination on repeated calls with delay. The current time of the first call of this redraw + latest is the latest time to activate the redraw event though delay was given by newer calls. onlyDynamics - true then only some appearances of the widget are redrawn, due to specified marker. Especially the background is not drawn newly as first action. The value of the latest call of this operation is valid if the redraw event is delayed. See Also: GralWidget_ifc.redraw(int, int) redrawOnlyDynamics public void redrawOnlyDynamics(int delay, int latest) redraw1 public void redraw1(int delay, int latest) redraw public void redraw(int delay, int latest) Description copied from interface: GralWidget_ifc Possible delayed repaint, can be called in any thread. If this method is re-called in the time where the delay is not elapsed then the delay will be set newly, the timer is winding up again. But the latest time on first call will be used. Specified by: redraw in interface GralWidget_ifc Parameters: delay - in milliseconds. If 0 or less 0, then it is executed immediately if the calling thread is the graphic thread. latest - The latest draw time in milliseconds. If it is <= 0, then it is unused. Note that a new call of repaint removes an existing repaint order to the new given time. With the latest argument for this time the repaint is always executing independent of new calls. toString public java.lang.String toString() Especially for test and debug, short info about widget. Overrides: toString in class GralWidgetBase See Also: Object.toString() toString public java.lang.StringBuilder toString(java.lang.StringBuilder u, java.lang.String... cond) Overrides: toString in class GralWidgetBase getImplAccess public GralWidget.ImplAccess getImplAccess() Returns the instance which extends the GralWidget.ImplAccess of this widget. Note: to get the real widget implementation (or its wrapper) call getImplWidget() or call with this return value GralWidget.ImplAccess.getWidgetImplementation() Specified by: getImplAccess in interface GralWidgetBase_ifc Overrides: getImplAccess in class GralWidgetBase Returns: null if the widget has not an implementation yet. stop void stop() setBackgroundColor @Deprecated public GralColor setBackgroundColor(GralColor color) Deprecated. Specified by: setBackgroundColor in interface GralWidget_ifc setBoundsPixel public void setBoundsPixel(int x, int y, int dx, int dy) Description copied from interface: GralWidget_ifc This operation is used if the pixel are calculated on gral level. Intrinsic this operation is not system-conform, instead use grid units here. TODO look where it is used. Specified by: setBoundsPixel in interface GralWidget_ifc setForegroundColor public GralColor setForegroundColor(GralColor color) Specified by: setForegroundColor in interface GralWidget_ifc XXXgetWidgetImplementation public java.lang.Object XXXgetWidgetImplementation() XXXremoveWidgetImplementation public void XXXremoveWidgetImplementation() XXXrepaintGthread public void XXXrepaintGthread() XXXsetFocusGThread public boolean XXXsetFocusGThread()

Class GralWidget

Nested Class Summary

Nested classes/interfaces inherited from class org.vishia.gral.base.GralWidgetBase

Nested classes/interfaces inherited from interface org.vishia.gral.ifc.GralWidget_ifc

Field Summary

Fields inherited from class org.vishia.gral.base.GralWidgetBase

Fields inherited from interface org.vishia.gral.ifc.GralSetValue_ifc

Fields inherited from interface org.vishia.gral.base.GetGralWidget_ifc

Constructor Summary

Method Summary

Methods inherited from class org.vishia.gral.base.GralWidgetBase

Methods inherited from class java.lang.Object

Methods inherited from interface org.vishia.gral.ifc.GralWidgetBase_ifc

Field Detail

sVersion

_wdgImpl

XXXbuildMng

itsCfgElement

cfg

whatIs

sToolTip

sDataPath

contextMenu

dataIx

sFormat

variable

variables

sCmd

htmlHelp

oContentInfo

bEditable

bShouldInitialize

redrawtDelay

redrawDelayMax

lastTimeSetVisible

dateUser

dyda

whenAll

redrawRequ

showWidgetInfo

Constructor Detail

GralWidget

GralWidget

GralWidget

GralWidget

GralWidget

GralWidget

Method Detail

createImplWidget_Gthread

setToPanel

removeImplWidget_Gthread

getGralWidget

setPrimaryWidgetOfPanel

getName

setContentInfo

getContentInfo

setData

getData

setEditable

isEditable

isNotEditableOrShouldInitialize

setDataPath

getDataPath

getCmd

getCmd

setCmd

getDataPath

setActionChange

specifyActionChange

specifyActionChangeWhen

specifyContextMenu

getActionChange

getActionChangeStrict

setActionMouse

setActionShow

getActionShow

setActionFocused

getActionFocused

getsToolTip

setToolTip
